GE
GECT0002
CT
HD750
6750270
| Availability: | |
|---|---|
| Quantity: | |

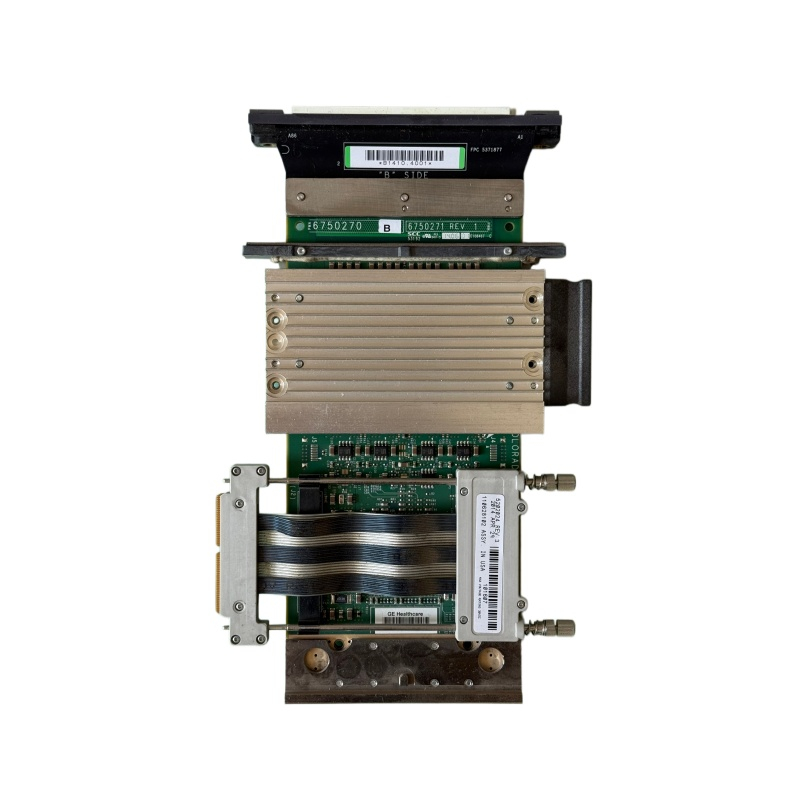

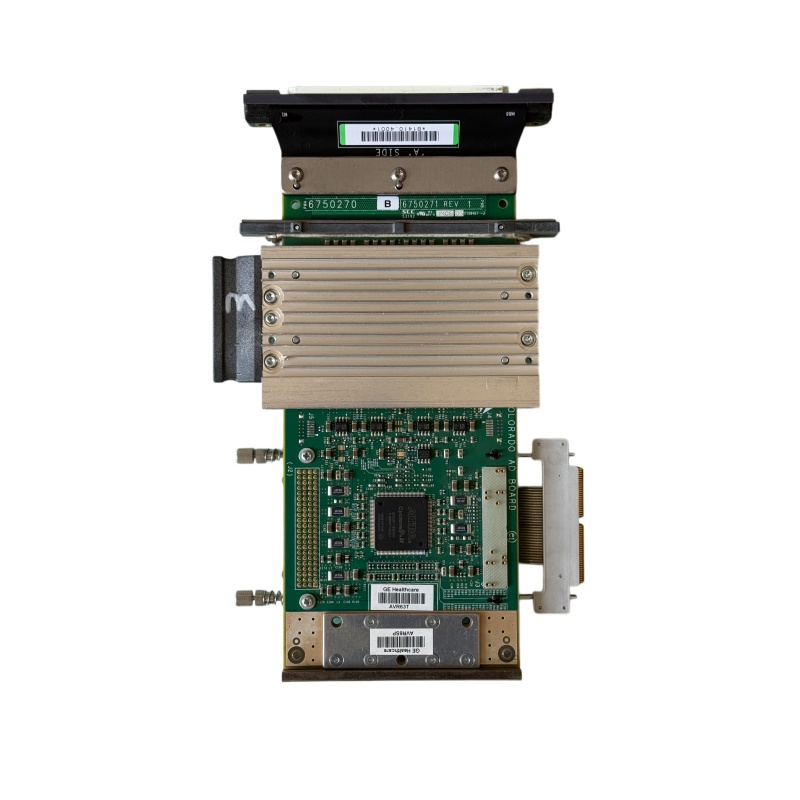

750 Detection Board is a high-precision signal detection board for high-end CT and interventional imaging equipment, dedicated to real-time monitoring, accurate sampling and logic verification of key operating signals. Adopting high-sensitivity acquisition links and multi-stage noise reduction circuits with medical-grade EMC and strong anti-interference capability, it stably captures weak dynamic signals. It precisely matches scanning timing, feeds back operating status and predicts abnormalities, ensuring efficient module collaboration and improving equipment reliability and clinical imaging stability.
Medical facilities require absolute clarity to make accurate diagnoses. This detection board delivers an exceptionally high signal-to-noise ratio (SNR) through its integrated multi-stage noise reduction architecture. When capturing data during rapid gantry rotations, the circuitry actively filters out ambient electronic chatter and thermal interference. The result is the efficient, lossless acquisition of sub-millimeter high-resolution imaging data. Engineers will notice the immediate difference in the raw data output—crisp, stable, and ready for complex algorithmic reconstruction. The physical board itself utilizes gold-plated contact points and shielded pathways to ensure that the electrical pulses remain pristine from the sensor array to the primary processing unit. The tactile feedback of the secure, locking connectors ensures that installation is positive and vibration-proof, a critical factor when mounted on a gantry rotating at multiple revolutions per second.
Integration into existing or next-generation architectures is straightforward and highly reliable. The 750 Detection Board is engineered to be natively compatible with 64-slice and higher-tier computed tomography systems, dual-energy CT setups, and a wide array of interventional imaging suites. It precisely matches the high-frequency, rapid scanning timing sequences required by modern gantries, eliminating synchronization errors that can lead to motion artifacts.
Looking toward the future of diagnostic technology, the architecture perfectly supports the underlying logic of Dual-Energy Spectral Imaging (DECT) and Photon-Counting CT (PCCT). Furthermore, the board is equipped with reserved high-speed data interfaces specifically designed to feed raw, uncompressed signal data directly into AI-assisted image reconstruction modules, empowering manufacturers to build smarter, faster, and more predictive diagnostic tools.
A critical challenge in modern radiology is minimizing patient exposure while maximizing diagnostic yield. Thanks to its ultra-high sensitivity in capturing weak dynamic signals, this detection board directly supports low-dose radiation protocols. By registering even the faintest photon interactions with remarkable accuracy, the system allows the entire imaging machine to operate at significantly reduced radiation outputs.
Similarly, the enhanced sensitivity means that lower volumes of contrast media are required to achieve optimal vascular or tissue opacification. Hospitals and imaging centers are constantly striving to improve patient comfort and safety. The ability to utilize lower concentrations of iodine-based contrast agents directly reduces the physiological burden on the patient. This capability is paramount for pediatric imaging, patients with compromised renal function, and routine screenings where cumulative exposure is a primary concern.
Operating in a high-voltage, high-frequency environment demands uncompromising structural and electronic integrity. When handling the board, the weight and rigidity of the multi-layer printed circuit board (PCB) immediately convey its durability. The faint metallic scent of the specialized anti-corrosion coating is a testament to the rigorous environmental protections applied during manufacturing. The board strictly adheres to medical-grade electromagnetic compatibility (EMC) standards, featuring resilient anti-interference mechanisms that shield delicate pathways from stray magnetic fields generated by the gantry motor and X-ray tube.
Real-Time Anomaly Prediction | Continuously monitors voltage and signal flow, triggering instant alerts before component failure occurs during critical scans. |
Thermal & Electrical Stability | Built with industrial-grade substrates that resist warping and maintain conductivity under continuous, heavy-duty scanning cycles. |
EMC Compliance | Multi-layered shielding prevents crosstalk, ensuring long-term operational stability in complex clinical environments with multiple emitting devices. |
By providing a flawless foundation for signal acquisition, this board empowers a multitude of complex clinical diagnostic procedures across various medical departments:
Cardiovascular Dynamic Angiography: Captures rapid blood flow and cardiac motion with zero lag, providing clinicians with sharp, blur-free visualizations of coronary arteries.
Micro-Lesion Tumor Screening: The sub-millimeter resolution capabilities ensure that even the smallest, earliest-stage oncological abnormalities are registered and displayed for early intervention.
Intravascular Stent Exploration: Delivers the extreme contrast and clarity needed to evaluate stent placement, expansion, and potential restenosis within tiny vessels.
High-Precision Orthopedic 3D Imaging: Facilitates the exact spatial mapping of complex bone structures, essential for pre-surgical planning and custom implant sizing.
Each application benefits directly from the board's ability to maintain absolute signal integrity under the most demanding operational conditions, ultimately elevating the diagnostic confidence of the medical staff.
