GE
GEDSA0007
DSA
INNOVA 2100 INNOVA 3100 INNOVA 4100 IGS 330 IGS520 IGS 530 IGS540 IGS 620 IGS 630 IGS 7
2318298-3-003-10090344
| Availability: | |
|---|---|
| Quantity: | |

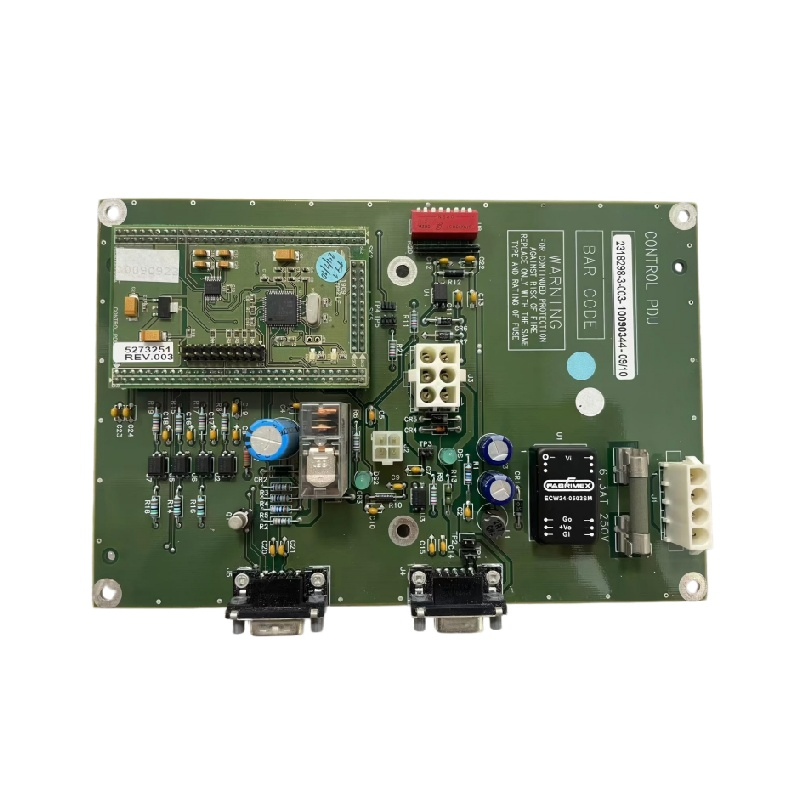

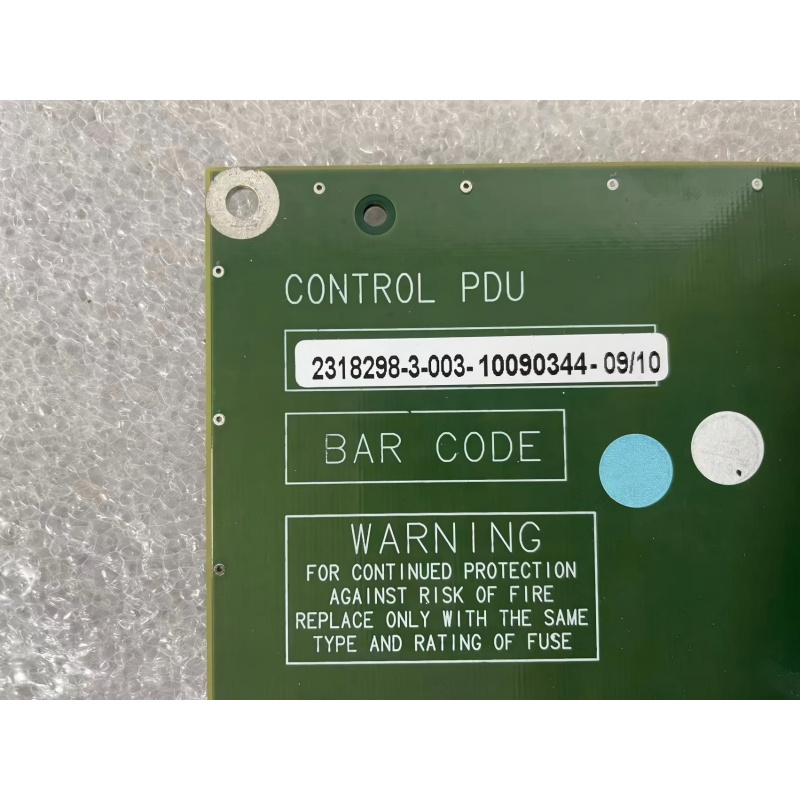

The Control PDU Board is a customized power distribution and control board for high-end medical imaging equipment, providing stable, pure and controllable power supply for all core modules of the whole device. It supports multi-channel independent power supply, overvoltage/overcurrent and short-circuit protection, as well as intelligent power-on sequence control. With excellent EMC design, it adapts to strict medical working conditions. It effectively avoids imaging interference caused by power fluctuation, simplifies the power architecture, and ensures all-weather safe and stable operation of CT and interventional medical equipment.
In the realm of diagnostic imaging, the slightest electrical noise can manifest as visual artifacts, potentially obscuring critical clinical details. Our customized control board addresses this challenge at its root through exceptional electromagnetic compatibility (EMC) engineering and ultra-low output impedance. By incorporating medical-grade isolation transformers and advanced noise suppression filters, the board actively scrubs the incoming electrical supply, delivering absolute purity to sensitive detector arrays and image reconstruction engines. You will notice the absence of electrical hum and the presence of heavy-duty shielding enclosures that physically block ambient interference. This meticulous approach to power conditioning completely eliminates voltage ripple effects on imaging clarity. Whether installed in a high-density urban hospital or a remote clinic with unstable grid conditions, the system maintains a pristine electrical environment, allowing your imaging equipment to capture the most accurate, high-resolution scans possible without unexpected interruptions or data corruption.
Managing the immense power requirements of high-end medical scanners requires more than just distribution; it demands intelligent, proactive oversight. This board is engineered with an array of active defense mechanisms that safeguard both the multi-million-dollar imaging hardware and the patients within the facility. These layers of protection ensure that any electrical anomaly is contained instantly, preventing cascading failures across the broader medical device architecture.
Protection Feature | Operational Benefit | Physical Characteristic |
|---|---|---|
Overvoltage & Overcurrent Defense | Instantly severs connection during grid spikes to protect sensitive components. | Solid-state relays with millisecond response times. |
Emergency Power Off (EMO) | Allows immediate system shutdown during critical clinical incidents. | Tactile, heavy-duty mechanical relays that engage with a definitive click. |
Intelligent Power-On Sequencing | Prevents massive inrush currents by staggering module activation. | Programmed microcontrollers accompanied by visual LED status indicators. |
Real-Time Status Monitoring | Continuously logs voltage and thermal data for predictive maintenance. | Integrated diagnostic ports for straightforward technician access. |
No two medical imaging platforms share the exact same power architecture. Recognizing this, our engineering team provides deep structural and electrical customization to ensure perfect synergy with your specific modality, whether it is a high-slice CT scanner, a powerful MRI suite, a PET/CT hybrid, or a highly maneuverable C-arm for interventional radiology. We configure multi-channel independent AC and DC outputs tailored to the unique draw of your gantry motors, cooling systems, and processing units. The physical board layout is meticulously designed to fit within confined equipment housings, utilizing heavy-gauge copper traces to handle substantial current loads without excess heat generation. Connectors are selected from top-tier international standards, providing a secure, vibration-resistant locking mechanism that you can physically feel snapping into place. This bespoke approach simplifies your internal wiring harness, reduces overall assembly time on your production floor, and guarantees that the power delivery matches the exact physical and electrical footprint of your proprietary medical technology.
Patient safety and equipment reliability are non-negotiable in the healthcare sector. Every customized control board is manufactured under strict adherence to ISO 13485 quality management systems. Before deployment, units must survive a punishing gauntlet of in-house laboratory evaluations designed to push the hardware to its absolute limits:
Surge & Transient Simulation: Replicating catastrophic grid failures to verify the resilience of internal isolation barriers and protective circuitry.
Thermal Aging Chambers: Subjecting boards to prolonged heat stress to ensure components will not degrade under continuous, 24/7 operation in busy trauma centers.
Material Integrity Checks: Utilizing premium flame-retardant substrates and applying conformal coatings that physically seal and protect sensitive circuits from dust and ambient hospital moisture.
Functional Verification: Comprehensive testing of all logic gates and power pathways to guarantee flawless performance, maintaining compliance and protecting your brand's reputation for reliability.
The true value of a critical component extends beyond its physical performance; it encompasses the support network that stands behind it. We understand that a downed CT scanner or MRI machine translates directly to delayed patient care and significant operational bottlenecks for healthcare providers. To mitigate these risks, we have established a highly responsive supply chain and technical support infrastructure. We offer expedited delivery protocols for customized batches and maintain a strategic reserve of critical replacement modules to facilitate rapid field swapping. Should your engineering team encounter integration challenges or require operational troubleshooting, our dedicated technical specialists are available around the clock to provide expert guidance. This comprehensive lifecycle support drastically reduces potential downtime, streamlines your maintenance operations, and provides the peace of mind that comes from partnering with a supplier fully invested in the continuous, successful operation of your medical imaging portfolio.
