GE
GEDSA0013
DSA
IGS 330 IGS520 IGS 530 IGS540 IGS 620 IGS 630
| Availability: | |
|---|---|
| Quantity: | |

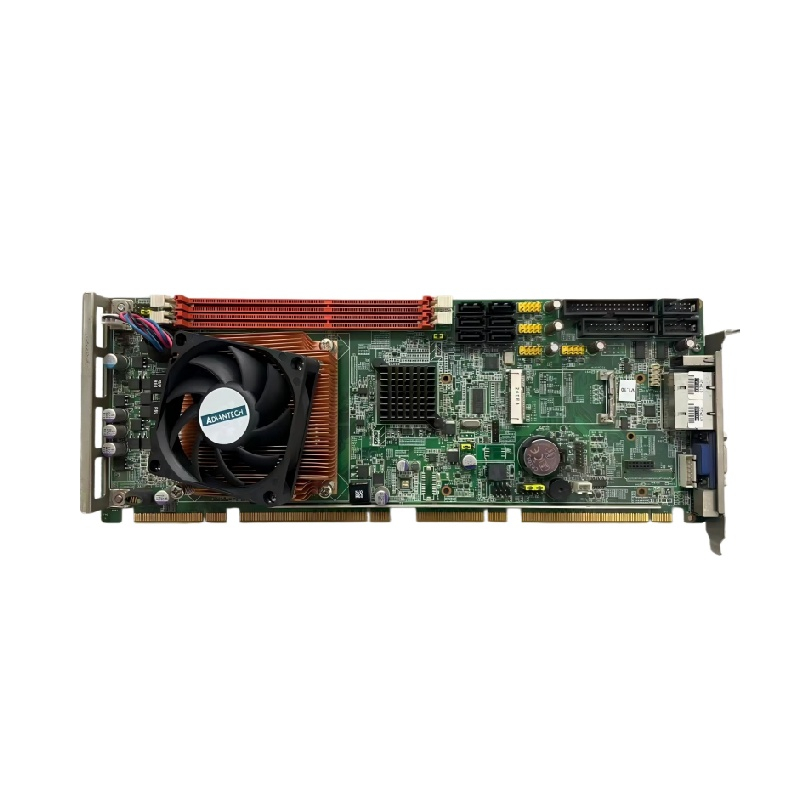

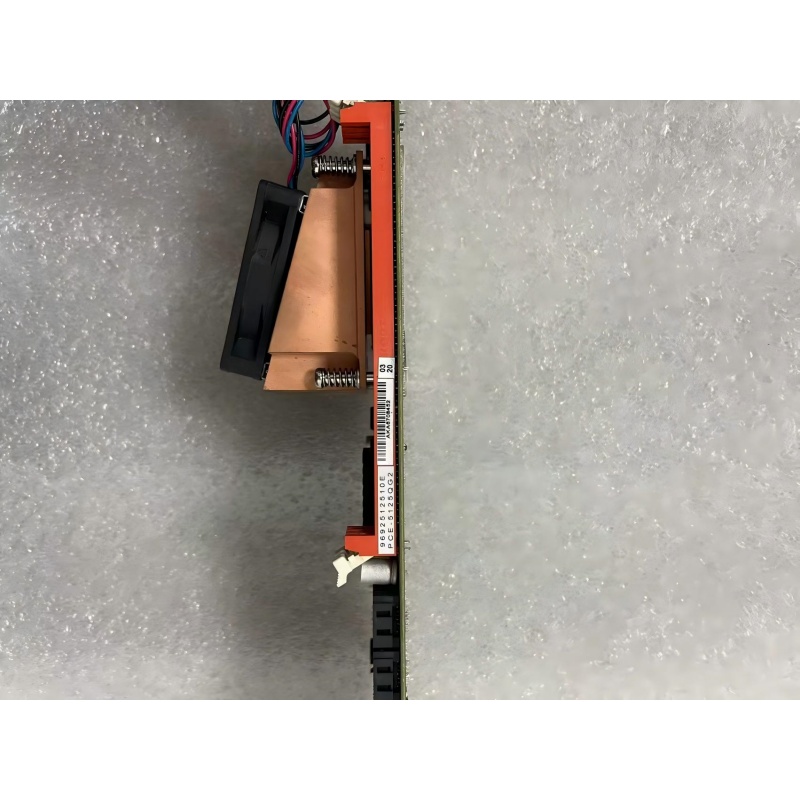

DL9 CPU BOARD is an embedded main control board developed for medical applications. Equipped with a multi-core processor, it integrates multiple communication and high-definition display interfaces. It delivers balanced computing performance with controllable power consumption, supports wide-temperature operation and features excellent EMC performance for stable and reliable operation. As the core control unit of medical equipment, it applies to imaging devices, patient monitors and diagnostic terminals, helping manufacturers simplify R&D, accelerate product launch and ensure long-term safe continuous operation.
Medical imaging requires substantial computational resources to process massive datasets without latency. The multi-core processor architecture embedded within this board easily handles the intensive real-time rendering and volumetric reconstruction demands of modern CT scanners, MRI machines, and 3D mammography equipment. By distributing the computational load efficiently across multiple processing cores, the system actively prevents data bottlenecks during critical diagnostic procedures. Radiologists and technicians rely on the immediate visualization of tissue structures, and this processing capability ensures that complex algorithms translate raw sensor data into clear, actionable imagery instantaneously. This rapid processing translates to shorter scan times, reducing patient discomfort and increasing the overall throughput of the imaging department.
High-Fidelity Visual Output: Integrates multiple high-definition display interfaces to drive 4K and dual-screen medical monitors, ensuring diagnostic images are presented with absolute clarity, deep contrast, and accurate color reproduction necessary for identifying minute anomalies.
Direct Sensor Synchronization: Flawlessly connects with high-precision detectors and patient monitoring sensors, maintaining strict timing and data accuracy across all peripheral inputs without signal degradation.
Versatile Communication Ports: Features a diverse array of physical communication protocols, allowing the main control unit to interface directly with legacy hospital infrastructure as well as modern, high-speed network architectures.
Navigating the strict regulatory landscape of the healthcare industry requires hardware built with compliance in mind from the ground up. This board features excellent EMC (Electromagnetic Compatibility) performance, meaning it neither emits disruptive interference nor suffers degradation from surrounding heavy medical machinery. The electrical architecture strictly conforms to medical safety standards, physically isolating critical circuits to protect both operators and patients from electrical surges. By utilizing a pre-validated, compliant main control board, equipment manufacturers can significantly reduce the time, capital, and documentation required to achieve global industry certifications, including FDA and CE approvals, smoothing the path to market entry and reducing regulatory friction.
Design Attribute | Operational Benefit |
|---|---|
Industrial-Grade Components | Resists physical degradation from constant 24/7 use, minimizing the risk of sudden hardware failure during critical patient monitoring sessions. |
Wide-Temperature Tolerance | Maintains stable, predictable operation in harsh environments, making it highly suitable for mobile medical vehicles, field hospitals, and varying climate conditions. |
Extended Supply Guarantee | Provides a reliable, locked-in supply chain for over 10 years, protecting manufacturers from costly mid-cycle redesigns due to unexpected component obsolescence. |
Enclosed large-scale imaging devices present significant thermal challenges due to the sheer volume of data being processed. This CPU board addresses these issues through an optimized low-power consumption design and an efficient thermal management strategy. The physical layout strategically separates heat-generating components, allowing for the rapid dissipation of thermal energy across integrated cooling surfaces. Even during prolonged, high-load diagnostic sessions, the board remains cool to the touch and operates well within safe temperature thresholds. This targeted heat displacement prevents thermal throttling, ensuring that the computing performance remains balanced and continuous, ultimately contributing to a zero-fault operational record in demanding clinical environments.
Broad OS Compatibility: Fully supports mainstream operating systems including Windows and Linux, providing developers with a familiar, highly adaptable foundation for custom software creation.
Rapid Deployment: Facilitates the swift integration of complex medical imaging software, allowing proprietary diagnostic algorithms to run natively without requiring heavy, resource-draining translation layers.
PACS Integration: Engineered to interface directly with hospital Picture Archiving and Communication Systems (PACS), ensuring secure, rapid transmission of large patient records across internal networks.
Network Security Ready: Provides the necessary architectural support for implementing stringent cybersecurity protocols, safeguarding sensitive medical data against unauthorized access and ensuring compliance with patient privacy regulations.
