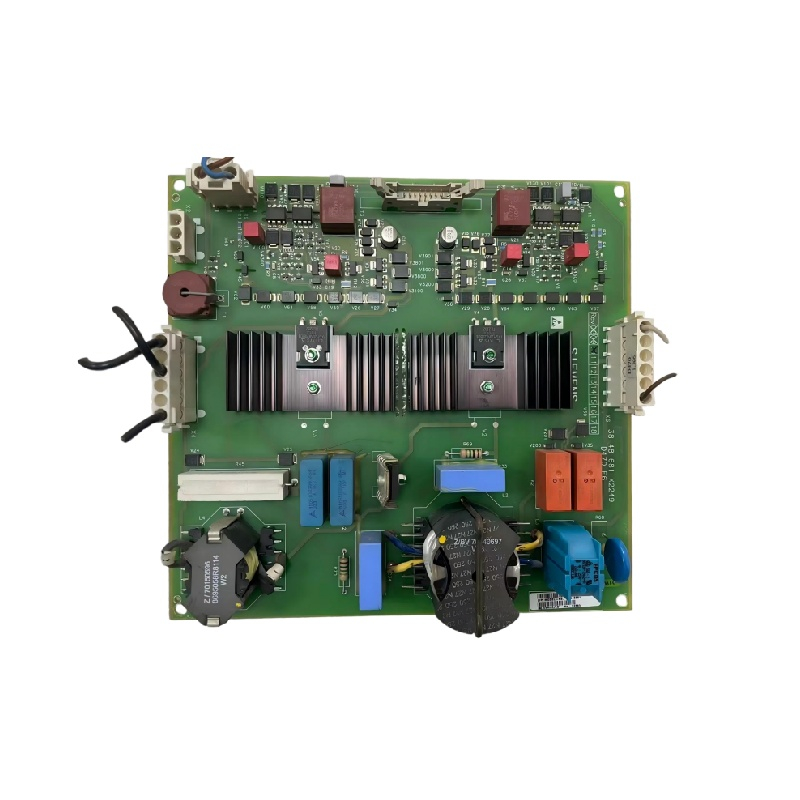

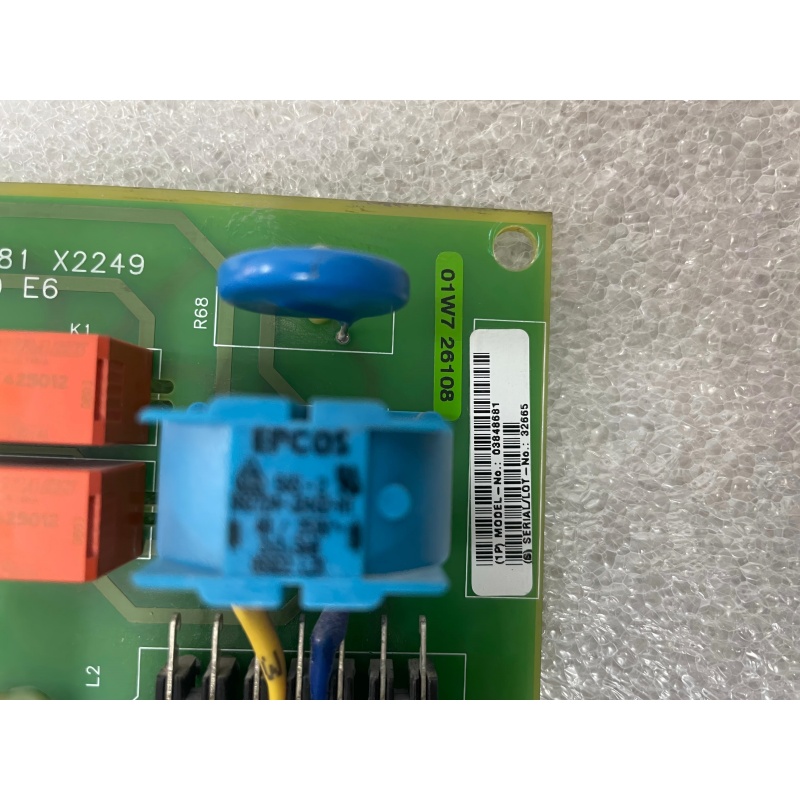

FIL POWER BOARD D470 For High-End Medical Imaging Equipment

Product Description

FIL POWER BOARD D470 is a customized filter power board for high-end medical imaging equipment, delivering purified and regulated power for imaging and motion units. Integrated with high-efficiency filtering, voltage stabilization and multi-protection circuits, it suppresses grid clutter and voltage fluctuation to avoid image noise and system instability caused by power interference. With medical-grade EMC performance and long-term load stability, it adapts to rigorous clinical conditions and ensures consistent high-quality imaging for CT and interventional devices.

Advanced Electromagnetic Compatibility and Signal Purity

Electrical noise is the primary adversary of diagnostic clarity in modern radiology. The FIL POWER BOARD D470 excels in superior filtering and EMC performance, specifically engineered to target and neutralize both EMI (Electromagnetic Interference) and RFI (Radio Frequency Interference). By eliminating grid clutter directly at the source before it can permeate the system, this board guarantees that the power reaching your highly sensitive imaging sensors is perfectly clean and stable. This exceptional level of interference suppression directly translates to zero-noise, high-definition image outputs. When scanning subtle tissue variations or tiny vascular structures, the absolute absence of electrical artifacts prevents potential misinterpretations and reduces the need for costly, time-consuming patient rescans.

• Broadband noise attenuation effectively blocks both common-mode and differential-mode interference from the facility's main power grid.

• Stabilized voltage delivery remains constant even during heavy, sudden power draws from neighboring hospital equipment.

• Preservation of delicate sensor data integrity ensures flawless transmission during continuous, high-speed scanning cycles.

Multi-Layered Circuit Protection for Clinical Safety

Medical imaging systems represent significant capital investments and involve direct, prolonged patient proximity, making electrical safety an absolute priority. The FIL POWER BOARD D470 is integrated with an exhaustive suite of comprehensive safety protection mechanisms designed to mitigate any electrical anomalies. These include rapid-response over-voltage and over-current safeguards that instantly isolate downstream components during unexpected power spikes or grid surges. Furthermore, the board features precise short-circuit prevention and active thermal monitoring to protect against over-temperature conditions during extended operational shifts. By continuously monitoring the electrical flow with microsecond precision, these multi-protection circuits act as an impenetrable fail-safe barrier, comprehensively safeguarding both the expensive core components of the imaging machinery and the patients undergoing examination from any electrical hazards.

Strict Adherence to Healthcare Regulatory Standards

Navigating the complex landscape of medical device regulations requires foundational components that are certified, tested, and proven to meet the highest global thresholds. This filter power board is designed in strict compliance with international medical equipment safety and electromagnetic compatibility standards, prominently including the rigorous IEC 60601-1 framework. This unwavering medical-grade compliance ensures that the diagnostic equipment utilizing the D470 meets all necessary criteria for immediate global clinical access. Equipment manufacturers and healthcare facilities can integrate this board with the absolute assurance that it satisfies stringent regulatory audits and safety inspections. By utilizing pre-compliant, meticulously tested power components, developers can significantly minimize regulatory risks and accelerate the deployment of critical diagnostic tools across diverse international healthcare markets.

Engineered for Continuous High-Load Clinical Environments

To support the demanding, round-the-clock schedules of modern hospitals and specialized diagnostic centers, the FIL POWER BOARD D470 is built for exceptional reliability and long-lasting durability. The manufacturing process utilizes top-tier industrial-grade components, including high-temperature resistant electrolytic capacitors and heavy-duty magnetic inductors, ensuring the board withstands continuous operation without performance degradation. As a result, the unit demonstrates an incredibly high Mean Time Between Failures (MTBF), which translates directly to years of dependable service and significantly reduced maintenance downtime for busy radiology departments. The robust physical construction, featuring deeply anchored solder joints and reinforced mechanical mounting points, easily handles the intense thermal cycling and constant mechanical vibrations inherent in heavy rotating machinery like large-bore CT scanners.

Flawless Integration with Specialized Diagnostic Systems

The architectural layout of the FIL POWER BOARD D470 is specifically tailored for precise equipment adaptation. Rather than functioning as a generic, off-the-shelf power supply, it is custom-engineered to meet the exact, demanding power draw characteristics of high-end CT, MRI, and interventional medical imaging equipment. Whether it is supplying ultra-clean power to the delicate, low-voltage imaging sensors or delivering robust, high-current energy to the heavy-duty motion units that position the rotating gantry and patient table, this board provides a flawless electrical interface. It delivers the exact regulated power required for these distinct, highly specialized subsystems to operate in perfect synchronization, ensuring smooth, judder-free mechanical movements and highly accurate data acquisition during complex, time-sensitive interventional procedures.

Dedicated Engineering Support and Custom Power Solutions

Recognizing that every proprietary medical imaging platform possesses unique architectural and electrical requirements, we back the FIL POWER BOARD D470 with comprehensive customized R&D and dedicated technical support. Our specialized team of professional engineers provides flexible power filtering customization services, adapting the baseline board design to accommodate specific spatial constraints within the machine housing, unique connector types, or highly specific electrical load profiles of your developing systems. Coupled with a rapid technical response protocol, we ensure that equipment designers, system integrators, and field maintenance teams receive the expert guidance necessary to resolve complex power integration challenges swiftly. This collaborative approach keeps critical development timelines on schedule and ensures that clinical operations maintain maximum uptime.
