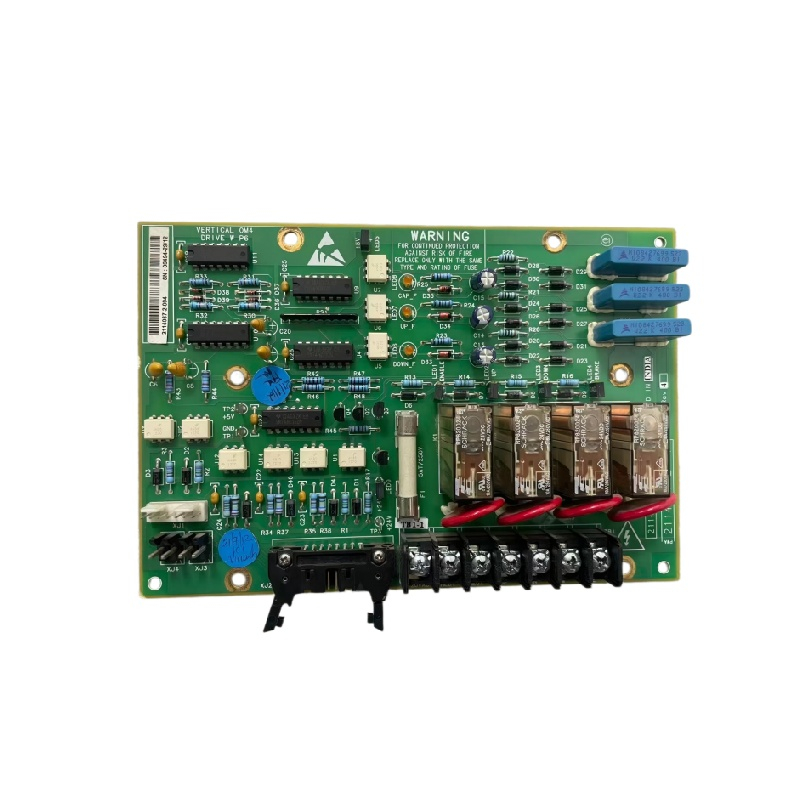

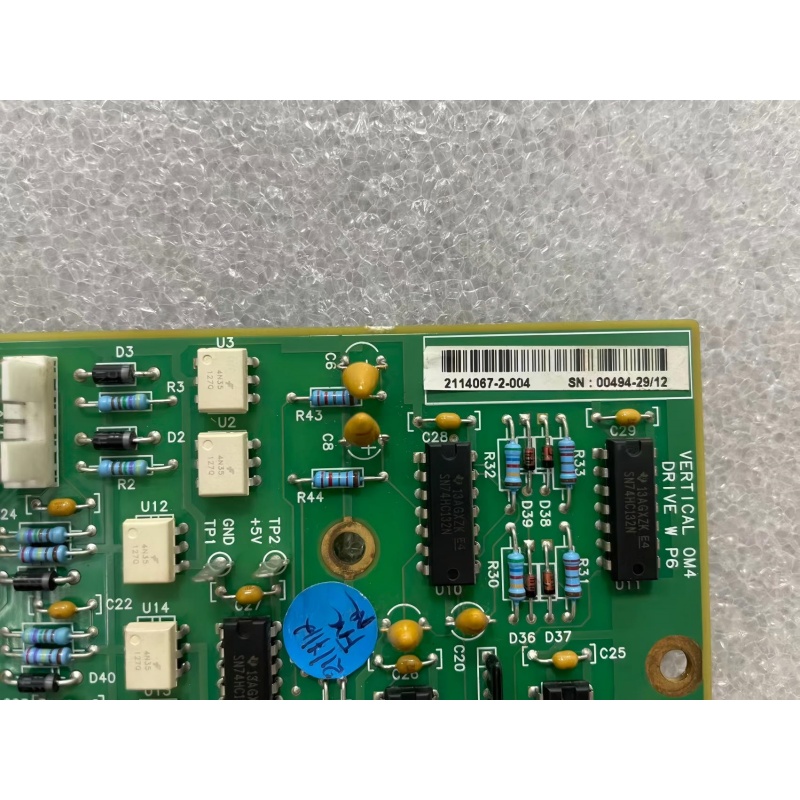

Omega IV/V Vertical Drive Board for Medical Imaging Equipment

Product Description

Omega IV/V Vertical Drive Board is a professional vertical motion drive board developed for medical imaging equipment, applicable to the lifting modules of patient tables and scanning gantries. Equipped with advanced drive algorithms, it eliminates lifting jitter and resonance to deliver smooth vertical movement and high-precision positioning. Featuring medical-grade EMC and strong anti-interference performance, it adapts to harsh clinical environments, optimizes system motion control, improves equipment safety and imaging consistency, and supports long-term high-frequency clinical operation.

Equipment Compatibility and Flawless Integration

For healthcare facilities and equipment maintenance organizations, minimizing downtime is the primary objective. This vertical drive board provides a one-hundred percent exact fit for mainstream medical imaging systems, including the widely utilized Discovery IGS series. Engineered to serve as a direct replacement for original factory components, it aligns perfectly with existing wiring harnesses and mounting brackets. Technicians will find the installation process straightforward, requiring minimal recalibration before the scanning gantry or patient table is fully operational again.

To further optimize your maintenance budget and support environmental sustainability, we actively support a comprehensive Core Exchange Program. By returning your worn or defective original drive boards, you can significantly offset the cost of your replacement parts. This initiative not only reduces the financial burden of keeping complex imaging machinery running but also ensures that critical electronic components are recycled or remanufactured according to strict industry standards, preventing unnecessary electronic waste.

Clinical Value and Motion Control Excellence

The primary function of the Omega IV/V Vertical Drive Board goes far beyond simple motor control; it directly impacts patient care and diagnostic accuracy. In medical imaging, even a microscopic shudder or mechanical resonance during a scan can result in blurred images, forcing operators to perform time-consuming rescans. By eliminating lifting jitter, this board ensures that the patient table glides upward and downward with absolute fluidity.

This smooth mechanical response reduces patient anxiety, as the table movements feel incredibly secure and solid. For the radiologic technologist, the high-precision positioning means they can align the patient with the imaging isocenter on the first attempt. The advanced drive algorithms continuously monitor and adjust the power output, compensating for varying patient weights to maintain a consistent lifting speed. This level of reliable motion control optimizes the entire workflow, allowing imaging departments to maintain high patient throughput without compromising safety or diagnostic consistency.

Uncompromising Quality and Compliance Standards

Operating within a radiology suite means functioning in an environment saturated with electromagnetic fields. The medical-grade EMC (Electromagnetic Compatibility) inherent in this drive board guarantees that it neither emits disruptive interference nor falls victim to the powerful signals generated by nearby scanning equipment. Every command sent from the main console reaches the lifting module without signal degradation, ensuring absolute operational predictability.

Furthermore, the manufacturing process strictly adheres to RoHS environmental standards, ensuring that no hazardous materials are used in its construction. This commitment to compliance means the board is safe to handle, environmentally responsible, and built to endure the rigors of long-term, high-frequency clinical operation. The highly effective thermal management system integrated into the board's layout dissipates heat rapidly, keeping the components cool to the touch even during peak operational hours, thereby extending the overall lifespan of the lifting mechanism.

Inventory, Secure Packaging, and Warranty Support

We recognize that when a critical imaging system goes down, every hour counts. To meet urgent replacement needs, we maintain a massive inventory of these vertical drive boards, offering both brand-new units and rigorously tested refurbished options. Every refurbished board undergoes an exhaustive diagnostic protocol under simulated heavy-load conditions to guarantee it performs identically to a new unit. Our certified technicians inspect every solder joint and replace any wear-prone capacitors, ensuring the board's electrical pathways are completely revitalized. This meticulous attention to detail means you can confidently install our replacement parts in high-traffic trauma centers where equipment failure is not an option.

To ensure your component arrives in pristine condition, we utilize specialized medical-grade packaging. Each board is sealed in an anti-static shield bag and suspended within custom-molded, shockproof foam. The exterior shipping cartons are constructed from double-walled corrugated cardboard, providing an additional layer of crush resistance during international freight handling. This secure packaging absorbs the vibrations and impacts of long-distance transit, guaranteeing the delicate circuitry remains completely intact upon arrival.
